Spreadsheet | Sort, Filter & Validation

The Data tab, the fill commands on Home ▸ Editing, and the notes and links on Insert and Review. Every command is one undo step on SpreadsheetController.

Sort

Data ▸ Sort & Filter — A→Z, Z→A and Sort… for a multi-level sort. The quick sorts act on the current region and detect a header row.

controller.SortAscending();                                                   // current region, header detected
controller.Sort([new SortKey(2, Descending: true), new SortKey(0)], hasHeader: true);

AutoFilter

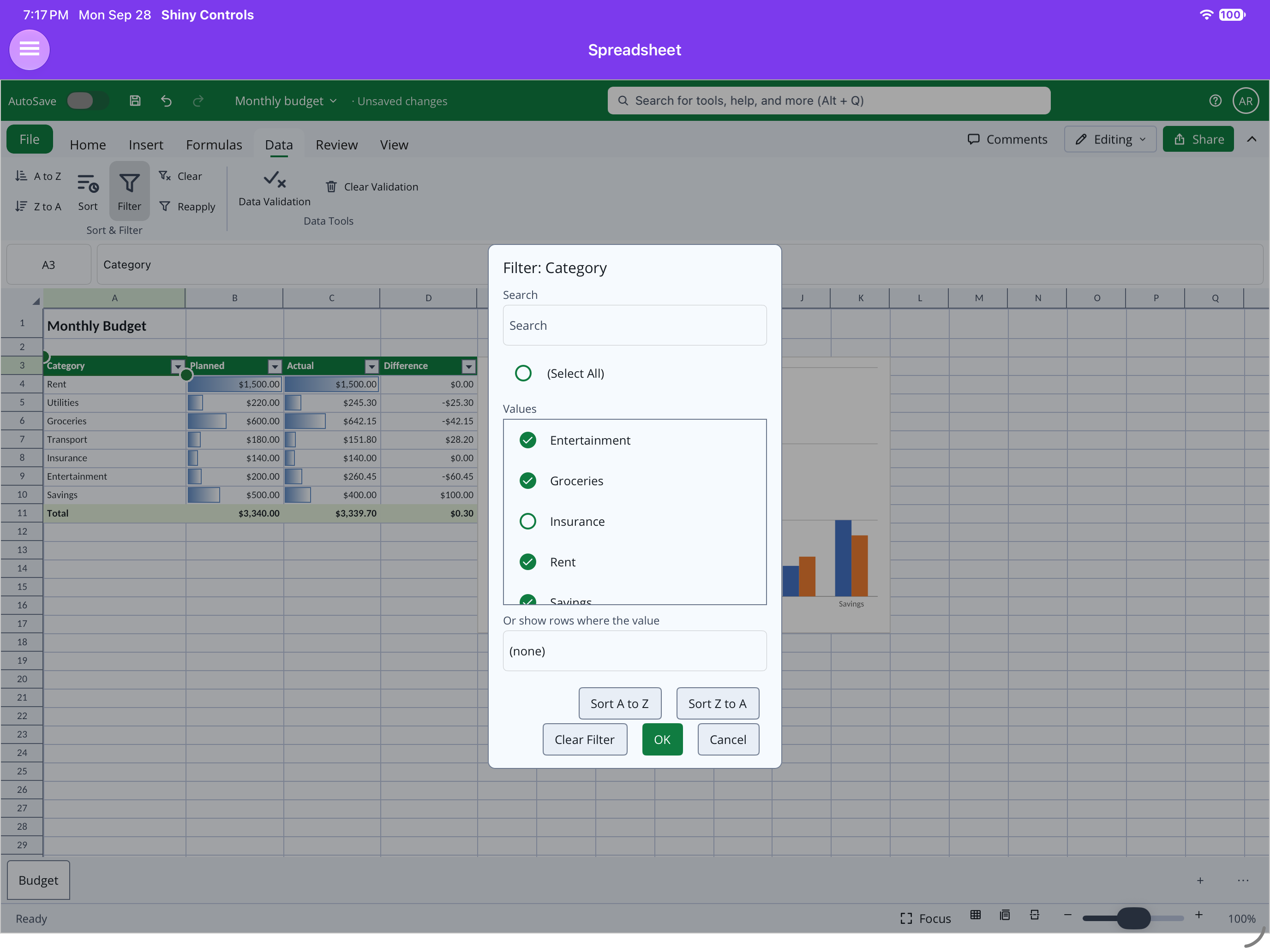

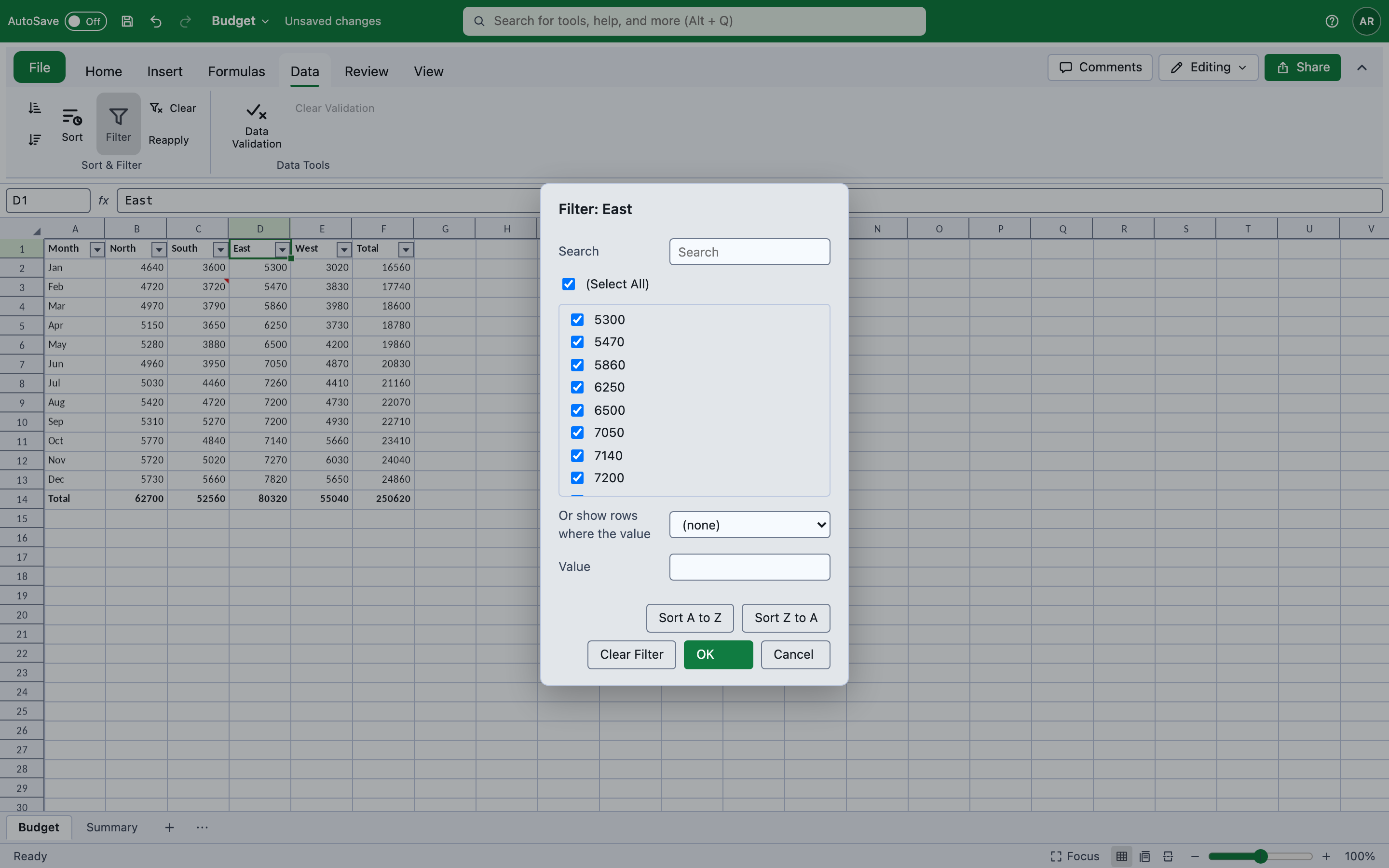

Data ▸ Filter (Ctrl+Shift+L) puts filter arrows on the header row. Each column filters by a value list or by text and number conditions; Clear and Reapply are next to it.

.NET MAUI (iPad)	Blazor WebAssembly

controller.ToggleAutoFilter();
controller.ApplyColumnFilter(sheet.AutoFilter!, 1, ColumnFilter.ForValues(1, ["North"]));

Filters write both halves. An AutoFilter is the <autoFilter> element and hidden="1" on each rejected row. Excel does not re-run a filter on open — it trusts the hidden rows — so the two are one command, and undo restores both. The status bar’s statistics count only the visible cells, so a filtered column sums what is on screen.

Data validation

Data ▸ Data Tools ▸ Data Validation restricts what a cell accepts. A list rule gives the cell an in-cell dropdown of its values, drawn the same way on both hosts.

controller.SetValidation(DataValidationRule.ForList(["Red", "Green", "Blue"]));
controller.SetValidation(DataValidationRule.ForNumber(ValidationType.Whole, ValidationOperator.Between, "1", "10"));
controller.SetValidation(null);                          // clears
controller.ValidationFailed += (_, failure) => { };      // refused input never reaches the cell

Fill

Drag the fill handle on the selection’s corner to extend a value or a series; Home ▸ Editing ▸ Fill has Down and Right, as do Ctrl+D and Ctrl+R. The fill handle continues series, weekdays and “Q1”→“Q2”, and rebases formulas.

controller.FillDown();          // Ctrl+D
controller.FillRight();         // Ctrl+R
controller.AutoFillTo(range);   // what the fill handle does

Notes and links

Insert ▸ Note / Review ▸ Notes — New/Edit, Delete, Previous, Next and Show All Notes. A note is text in the comments part plus a hidden shape in a VML drawing; without the shape Excel keeps the note and never shows it, so both are rewritten together. New notes are signed with the view’s UserName, and the shell’s comments pane lists every note in the workbook.

Insert ▸ Link (Ctrl+K) adds a cell hyperlink.

controller.SetNote("Check this");
controller.SetHyperlink(new CellHyperlink(cell) { Address = "https://shinylib.net" });
