AddressEntry

An address search control built on AutoCompleteEntry that queries a geocoding provider (Nominatim/OpenStreetMap by default) and returns structured address data with coordinates. Supports custom geocoding providers via IAddressSearchProvider.

•
•

Frameworks

.NET MAUI

Blazor

Basic Usage

<shiny:AddressEntry SelectedAddress="{Binding Address}"
                    Placeholder="Search address..."
                    CountryCodes="us,ca" />

The control debounces input (400ms, 3-character threshold), queries the geocoding provider, and displays matching addresses in a dropdown.

Properties

Property	Type	Default	Description
SelectedAddress	Address?	null	Selected address (TwoWay)
SearchProvider	IAddressSearchProvider?	null	Custom geocoding provider (defaults to Nominatim)
CountryCodes	string?	null	Comma-separated ISO country codes to filter results
Placeholder	string	"Search address..."	Placeholder text
MaxDropDownHeight	double	250	Maximum dropdown height
TextColor	Color? / string?	null	Text color
PlaceholderColor	Color? / string?	null	Placeholder color
DropDownBackgroundColor	Color? / string?	null	Dropdown background
DropDownBorderColor	Color? / string?	null	Dropdown border color
SpinnerColor	Color? / string?	null	Loading spinner color
FontSize	double	14	Font size
FontFamily	string?	null	Font family (MAUI only)
CornerRadius	double	4	Dropdown corner radius (MAUI only)

Events

Event	Args	Description
AddressSelected	Address	Fires when an address is selected

Address Model

The Address record provides structured address data:

Property	Type	Description
DisplayName	string	Full formatted address
HouseNumber	string?	House/building number
Street	string?	Street name
City	string?	City, town, or village
State	string?	State or province
PostalCode	string?	Postal/ZIP code
Country	string?	Country name
CountryCode	string?	ISO country code
Latitude	double	Latitude coordinate
Longitude	double	Longitude coordinate

Custom Search Provider

Implement IAddressSearchProvider to use your own geocoding service:

public interface IAddressSearchProvider
{
    Task<IList<Address>> SearchAsync(string query, string? countryCodes, CancellationToken ct);
}

Example with a custom provider:

public class GoogleGeoProvider : IAddressSearchProvider
{
    readonly HttpClient http;

    public GoogleGeoProvider(HttpClient http) => this.http = http;

    public async Task<IList<Address>> SearchAsync(string query, string? countryCodes, CancellationToken ct)
    {
        // Call Google Geocoding API
        var response = await http.GetFromJsonAsync<GoogleResult>($"...", ct);

        return response.Results.Select(r => new Address(
            r.FormattedAddress,
            r.AddressComponents.HouseNumber,
            r.AddressComponents.Street,
            r.AddressComponents.City,
            r.AddressComponents.State,
            r.AddressComponents.PostalCode,
            r.AddressComponents.Country,
            r.AddressComponents.CountryCode,
            r.Geometry.Location.Lat,
            r.Geometry.Location.Lng
        )).ToList();
    }
}

<shiny:AddressEntry SearchProvider="{Binding MyGeoProvider}"
                    SelectedAddress="{Binding Address}" />

Styling

<shiny:AddressEntry SelectedAddress="{Binding Address}"
                    FontSize="16"
                    TextColor="Black"
                    DropDownBackgroundColor="#F9FAFB"
                    DropDownBorderColor="#6B7280"
                    CornerRadius="8" />

Blazor Usage

<AddressEntry SelectedAddress="@selectedAddress"
              SelectedAddressChanged="OnAddressChanged"
              Placeholder="Search address..."
              CountryCodes="us,ca"
              FontSize="16"
              TextColor="#333"
              InputClass="my-input"
              DropDownClass="my-dropdown" />

@code {
    Address? selectedAddress;

    void OnAddressChanged(Address? address)
    {
        selectedAddress = address;
        if (address is not null)
        {
            Console.WriteLine($"Lat: {address.Latitude}, Lng: {address.Longitude}");
        }
    }
}

Blazor-Only Properties

Property	Type	Default	Description
InputClass	string?	null	CSS class for the input element
DropDownClass	string?	null	CSS class for the dropdown

Note

On Blazor, the SearchProvider is set directly as a component parameter. The default Nominatim provider uses an injected HttpClient. Colors are CSS strings. FontFamily and CornerRadius are not available — use CSS or class parameters instead.

Default Provider Notes

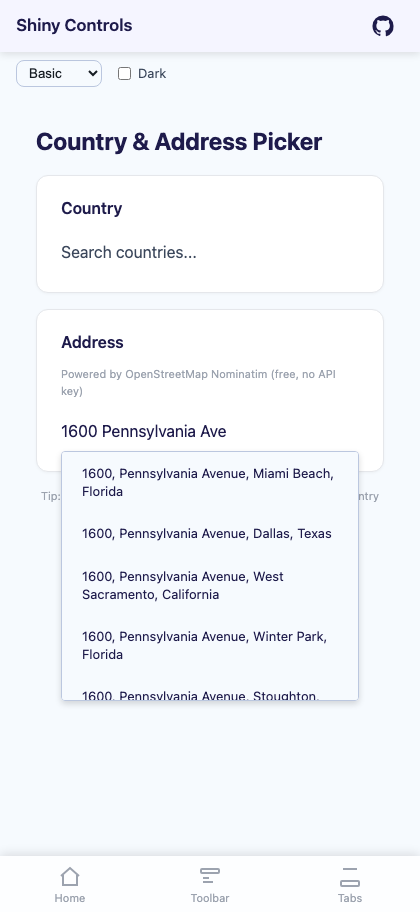

The built-in NominatimAddressSearchProvider queries OpenStreetMap’s free Nominatim API:

• Includes a User-Agent: Shiny.Maui.Controls/1.0 header (required by Nominatim usage policy)
• Returns up to 5 results per query
• Supports country code filtering via the CountryCodes parameter
• For production use with high traffic, consider implementing a custom provider with a commercial geocoding service
