Shiny Controls 1.3 — Word, Excel and PowerPoint in Your App. Free.

Sep 4, 2026

Allan Ritchie

One of the guys who builds this

Shiny Controls 1.3 is the Office release. A fourth editor — a free-form Notebook — joins the document, the deck and the workbook; all four wear real ribbons; Find works across every one of them; and SlideView learned to present to a room. Alongside that, IMediaService turns the camera from a screen you build into a service you call, TimelineView lands on both hosts, and the motion icon set nearly triples.

Everything below is on both hosts unless the heading says otherwise — native .NET MAUI and real Blazor components, same API, same painter, no WebViews.

•
•
•
•

Go press things first: the whole Blazor gallery is live at shinyorg.github.io/controls.

---

IMediaService — a camera you call, not a screen you build

MAUI only.

Most apps reaching for a camera do not want a camera screen. They want a result: a photo of a receipt, a barcode, the number off a credit card. MAUI’s own IMediaPicker gets you there by handing the job to the system camera UI — which cannot show a scan reticle, a bounding box, an effect strip, or a single word of your own copy. So every app that needs any of that hand-rolls a camera page.

That page is now the service.

builder
    .UseShinyControls()
    .UseShinyCamera(media =>
    {
        media.CompressionQuality = 85;
        media.MaxDimension = 2048;
        media.OutputFormat = MediaImageFormat.Jpeg;
    });

public class DeliveryViewModel(IMediaService media)
{
    public async Task CapturePod()
    {
        var photo = await media.TakePhotoAsync(new PhotoCaptureOptions
        {
            Title = "Proof of delivery",
            Instructions = "Fit the whole label in frame"
        });

        if (photo is not null)
            await photo.SaveAsync(Path.Combine(FileSystem.AppDataDirectory, "pod.jpg"));
    }
}

You get camera and gallery permissions, TakePhotoAsync / RecordVideoAsync through a modal built from CameraView, PickPhotoAsync / PickPhotosAsync / PickVideoAsync, and — from the analyzer add-ons — a one-line verb per document type.

var code     = await media.ScanBarcodeAsync();          // closes on the first hit
var card     = await media.ScanCreditCardAsync();
var licence  = await media.ScanDriversLicenseAsync();
var passport = await media.ScanPassportAsync();
var contact  = await media.ScanBusinessCardAsync();

await foreach (var scanned in media.ScanBarcodesAsync()) // stays up and streams
    this.Codes.Add(scanned.Value);

Every scan comes in two shapes, and the plural one is the real one: the modal opens when enumeration starts and closes when it ends, so the singular overload is literally “take the first, then stop enumerating”. Cancellation, the user tapping ✓, MaxResults and Timeout all end it the same way. Duplicate filtering is on by default — a code sitting in front of the lens is otherwise re-read every time it drifts out of view and back — and the key is chosen per type rather than by generic equality: symbology plus value for a barcode, since the same digits as an EAN-13 and as a QR code are two different scans.

A few decisions worth calling out, because they are the ones you would otherwise hit later:

• Anything that presents UI asks for its own permissions first, and returns null on a cancel or a refusal rather than throwing. A cancelled camera is an ordinary outcome, not an exception.
• The modal ships no localizable strings of its own. Close, torch, flip, flash, retake and accept are drawn vector paths, not font glyphs or emoji — so there is nothing on the page to translate, and the only text it shows is the Title and Instructions you supply already localized.
• A scan modal has no capture button at all. The camera is on and streaming results; a shutter would invite a tap with nothing for a still to be the result of.
• Compression defaults live at registration. “Our photos are 85% JPEG capped at 2048px” is stated once rather than at twenty call sites, and the per-call options are nullable so unset is distinguishable from deliberately 92. Nothing is re-encoded when nothing was asked for.
• The service knows nothing about barcodes. It exposes one primitive — ScanAsync<T> — and each analyzer package contributes its typed verb on top. It is public, so an analyzer we ship no verb for is a dozen lines rather than a fork.

→ IMediaService

---

A free-form Notebook, in the Office packages

NotebookEditor is the lone canvas; NotebookEditorView wraps it in a ribbon, section tabs and a page list. A OneNote-style page you write anywhere on, draw over, and fill with the same shapes, pictures and rich text as the .docx and .pptx editors.

var notebook = NotebookDocument.Create("Field notebook");
using var opened = await NotebookDocument.OpenAsync("field.shinynote");

<div style="height:640px">
    <NotebookEditorView Notebook="notebook" @bind-Tool="tool" />
</div>

<office:NotebookEditorView x:Name="Editor" />

The one structural difference from a slide is that a page has no edges. A slide is a fixed artboard the viewer fits to the window; a page grows to hold whatever is on it — its extent is the minimum unioned with every item’s bounds plus padding — and the canvas scrolls and zooms instead, so there is always blank room past the furthest thing to keep writing into. Everything else is machinery the other three editors already run on: the same shape geometry, the same rich-text layout engine, the same SkiaSharp painter shared verbatim by both hosts, the same transactional undo stack.

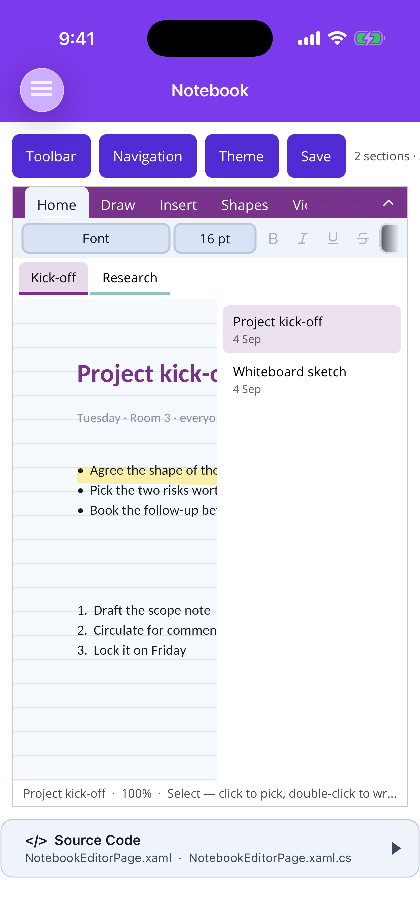

MAUI (iOS)

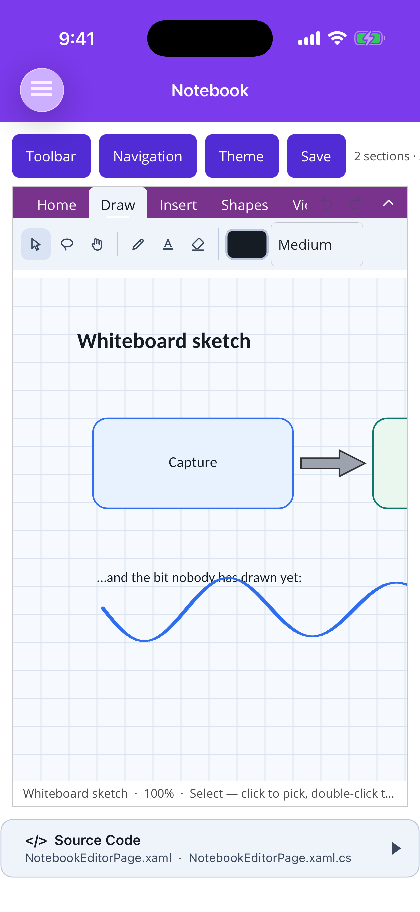

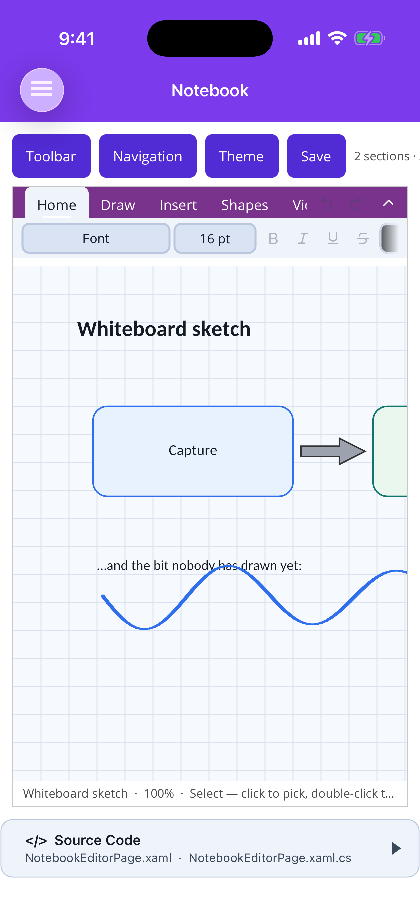

Ribbon, section tabs, page list	Shapes and ink on a page	The Draw tab

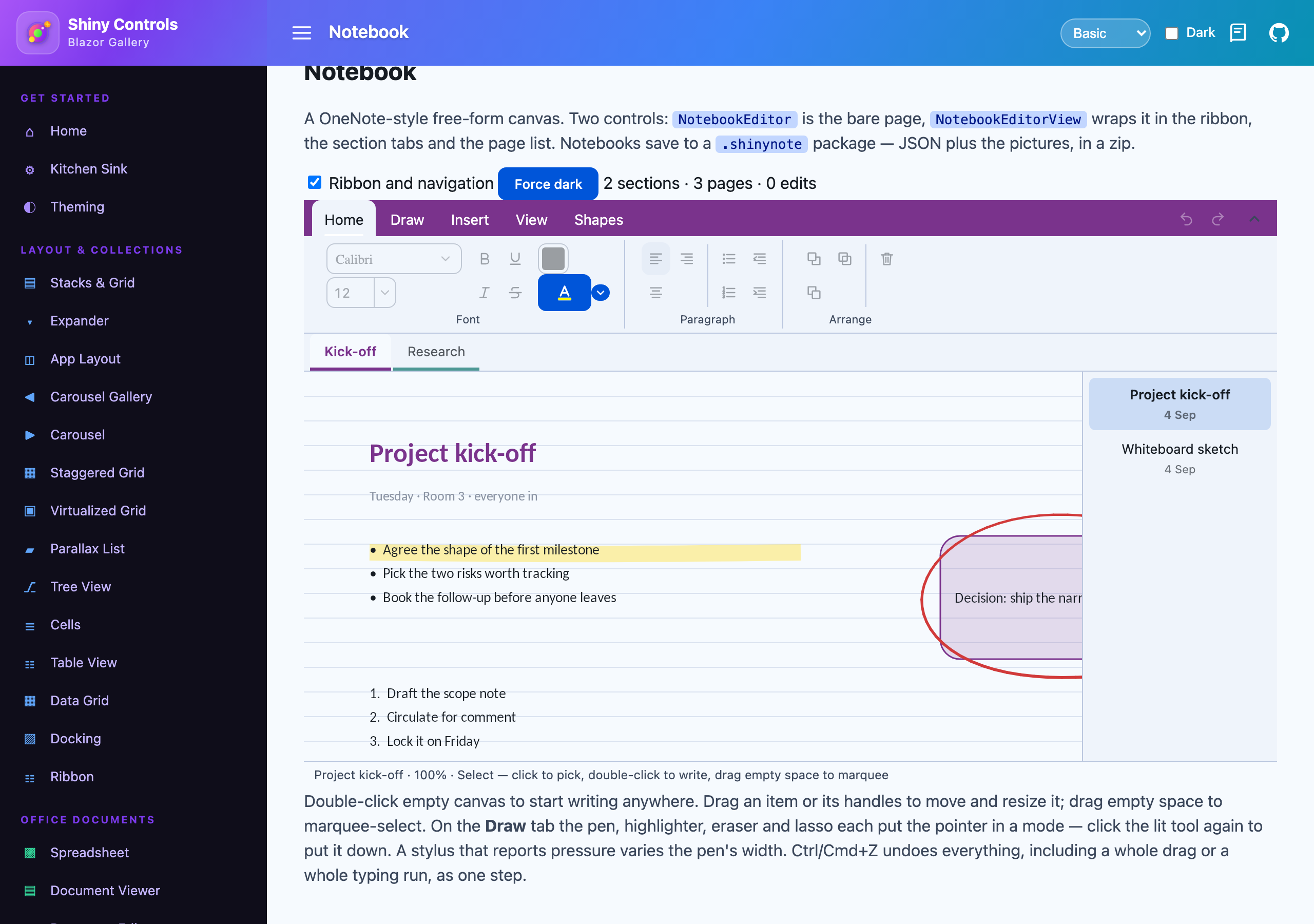

Blazor

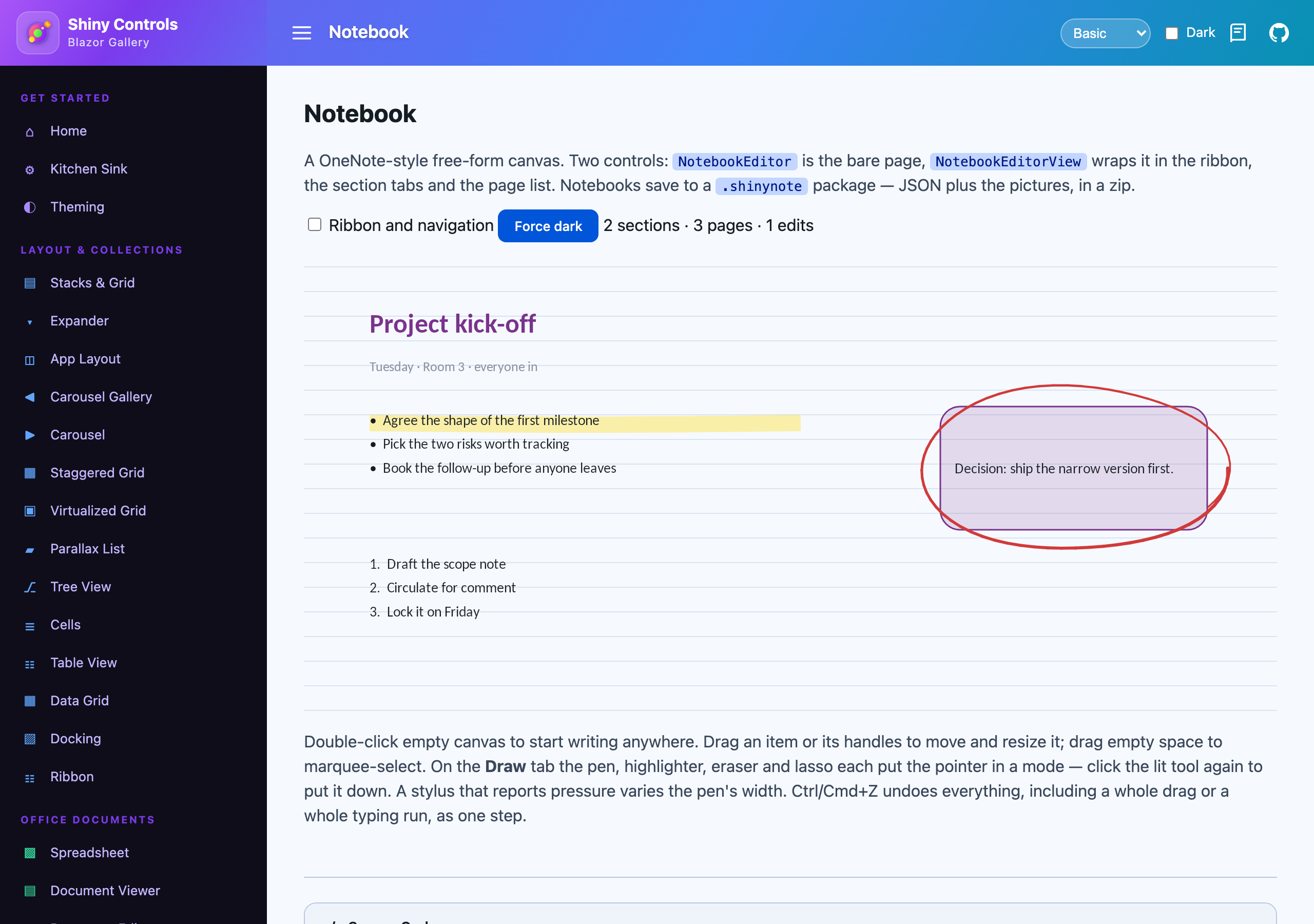

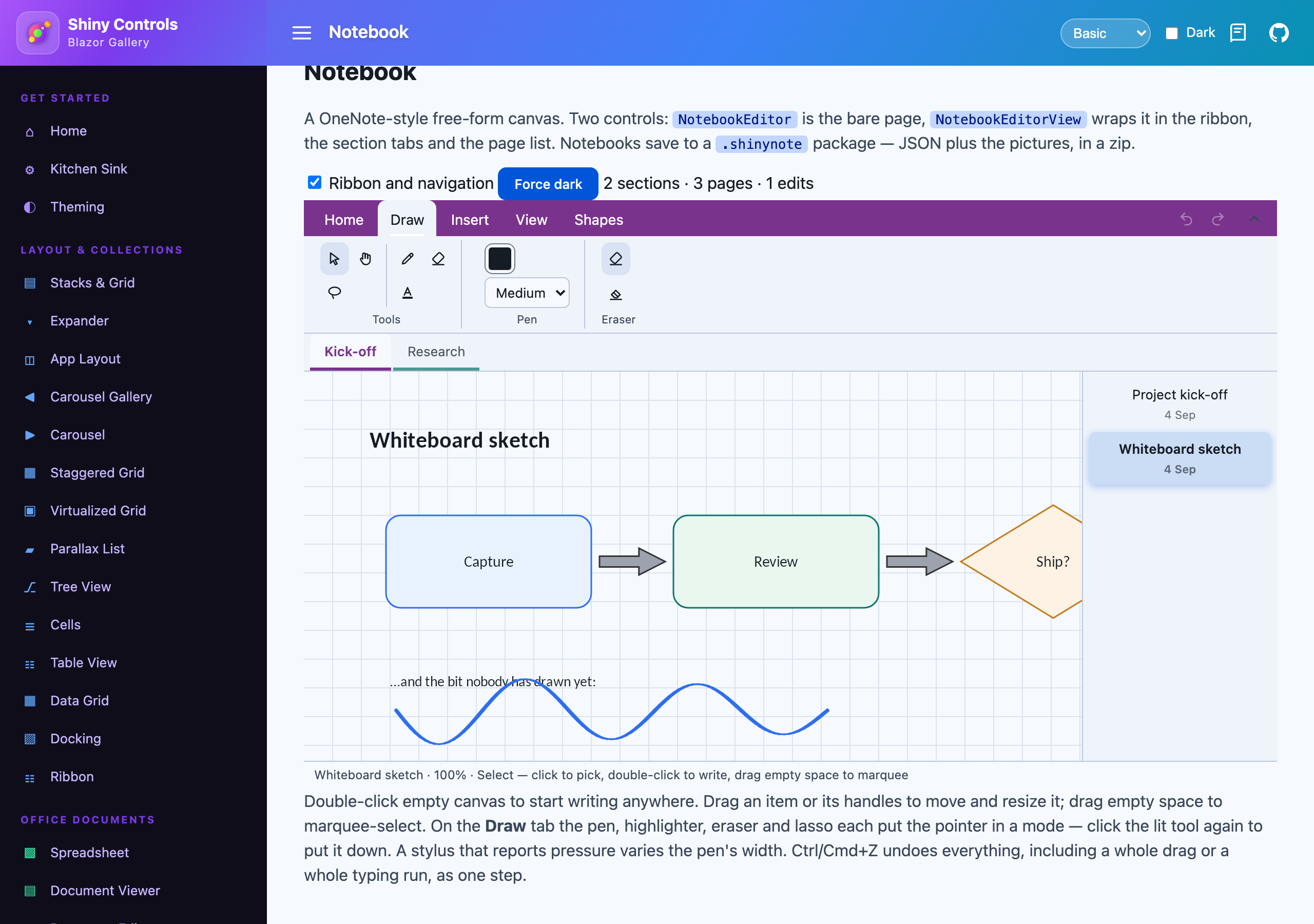

NotebookEditorView	The Draw tab on a sketch page	NotebookEditor, no chrome

Three layers of state, kept apart deliberately. The tool decides what a press starts — Select, Text, Shape, Pen, Highlighter, Eraser, Lasso, Pan. The selection is a set of item ids rather than a single index, because a lasso routinely catches thirty strokes and a picture and they all have to move together. Text editing is a caret inside exactly one item. Escape steps back out one layer at a time — leaves the text, puts the tool down, clears the selection — which is the only affordance that makes a modal canvas safe to hand someone.

Ink is a real model, not a stroke overlay. Pressure is normalised 0..1 where 0.5 means “no idea” — the value a mouse, a finger on a screen with no force sensor and a stylus mid-flick all report — and it multiplies the pen’s nominal width rather than replacing it, so switching device does not change how thick the pen looks. The highlighter paints beneath every other item, because ink over text greys the glyphs even at 40% alpha, which is exactly what a highlighter is not for. The point eraser splits a stroke into separate items where it passes through rather than leaving a hole in the point list. Hit-testing and lasso capture both work against a stroke’s path, not its bounding box — a stroke’s rectangle is mostly empty, so treating it as solid makes one flourish swallow every click in that corner.

.shinynote is a zip holding JSON and the pictures: notebook.json for the notebook, its sections and each page’s settings, pages/{pageId}.json for that page’s items in z-order, pictures as files under media/. Pages are separate entries because a notebook is the one Office-shaped thing here that genuinely grows without bound, and it makes a page recoverable when a neighbour is corrupt. This is also the one editor whose model is the truth rather than a projection of an OOXML package, so there is no byte-identical promise — the equivalent guarantee is that everything survives a save and reopen.

It is also the one Office surface whose page follows the app theme. A document and a deck are pictures of something printed, so tinting the paper misrepresents the file; a notebook page was never printed and has no canonical appearance. Existing ink is never recoloured, though — repainting a user’s strokes is not theming.

→ Notebook

---

The Office editors got their ribbons

The Spreadsheet, Document Editor, Slide Editor and Image Editor were each a single scrolling strip of two dozen icons separated by anonymous hairlines. They are titled groups on tabs now, with undo and redo in a quick access row where they never move.

Control	Tabs
Spreadsheet	Home (Clipboard · Font · Alignment · Number · Editing) · Data (Cells · Columns · Functions)
Document Editor	Home (Font · Paragraph · Proofing) · Layout (Page Setup · Insert · Zoom) · Shapes
Slide Editor	Home (Slide · Font · Paragraph) · Insert · Shapes
Image Editor	Home (Tools · Shapes · Image) · View · contextual Drawing / Shape / Text Tools

Blazor

Home tab, in named groups	Insert tab	Narrow — low-priority groups folded

MAUI (iOS)

Phone width — every group a button	A contextual tab

The Ribbon on its own demo page — the same bar the four Office editors now wear.

The tab strip stays off by default where there is a single tab to show — these are bars a host drops above a surface, not an application’s whole chrome, and a strip carrying one “Home” is noise.

The split is by what a command changes, not by how often it is reached. On the spreadsheet, Home changes how a cell looks and Data changes the shape of the sheet under it — which is what let the structural half finally grow past its ceiling. Delete rows and columns now sit beside the insert pair whose icons they mirror; a Width split button fits columns to their contents and offers four fixed widths behind its chevron, including the sheet’s own default (the only way back once a column has been dragged); hide and unhide columns; and a function library gives SUM, AVERAGE, COUNT, MIN and MAX a button each. All of those existed on SpreadsheetController with nothing on the bar to reach them.

The document editor was tried with four tabs, and Insert, Layout and Review each ended up holding a single group — a click to reach a bar with one button on it. Proofing rides on Home instead, because spelling is something you do while writing rather than a separate pass. The slide editor stops at two, because a slide is a fixed artboard always scaled to fit: there is nothing to pan to or zoom in on, so nothing to fill a third tab with.

Shapes are a tab in both editors, not a dropdown. Twenty shapes behind one button is a panel large enough to cover the document it is about to draw on. Every button is drawn as the shape it inserts, using the same polygon, star and arrow maths the painter uses to lay that shape into the document — hand-drawn icons drift from what actually gets inserted the first time either side is adjusted.

Two ribbon features came out of this and belong to Ribbon itself:

• Ribbon.SimplifyBelowWidth switches the bar to the dense one-row layout on its own. Group collapsing is the wrong answer at phone width — it folds groups into dropdowns worst-first, which is right when a window is a little too narrow, but on a phone there is room for no group at all and every command ends up behind a dropdown. A collapse the user asked for is never overridden.
• A ribbon that scrolls now says so. Where collapsing is off, or the collapsed groups still do not fit, the body scrolls — and a scrolling bar looked exactly like one that did not. Both hosts draw a fade on whichever edge still has content past it. The platform scroll indicator is not the answer: on iOS and Android it only appears once a scroll is under way, which is after the moment the user needed to be told.

Breaking — MAUI only

The MAUI Ribbon moved from Shiny.Maui.Controls.Desktop into Shiny.Maui.Controls, and its namespace with it: Shiny.Maui.Controls.Desktop.Ribbons → Shiny.Maui.Controls.Ribbons. The desktop package’s target frameworks stop at the desktop ones, which put the ribbon out of reach of every core control that wanted it. XAML is unaffected — it was always mapped onto the http://shiny.net/maui/controls URI, so shiny:Ribbon reads exactly as before and only a C# using needs changing. Blazor already had it in core and does not move.

→ Ribbon · Spreadsheet · Document Editor · Slide Editor · Image Editor

---

Find, on all three Office controls

Home ▸ Find carries a box, a 3/12 readout and a previous/next pair on the Word, PowerPoint and Excel toolbars — one OfficeFindBar per host over one IFindController, which all three finders implement. The bar has no idea whether “the next one” is a paragraph below the fold, a shape on slide nine, or a cell three sheets over.

Typing searches as you type and steps onto the first hit at or after the caret, not the top of the content — a find that always restarted at the beginning takes the user away from what they were reading. The arrows wrap, because a “next” that goes quiet at the last hit looks identical to one that has finished the document. A hit is selected rather than merely scrolled to: everything a person does after finding a word operates on the word. Finding changes nothing, so it stays live in a read-only editor.

What each search covers is decided by what its arrows can reach. Word searches paragraphs and not table cells — a document position is a block and an offset, and a table has neither, so counting those hits would promise something “next” could never step to. PowerPoint searches the whole deck but only the shapes a slide itself owns, since a hit inside a layout or master would count the company name once per slide and step the user into something they cannot select. Excel searches cell text as the formula bar shows it, which is the only choice under which searching SUM finds the cells that total something.

Every hit is washed amber and the one you are on is drawn as the selection instead of stacking the two — stacking made the current match a muddy blend and the hardest thing on the page to pick out, which is the opposite of what it is for.

→ Find in Office Documents

---

SlideView presents

A viewer shows a deck to the person holding the device. Presenting mode shows it to a room.

Blazor — SlideView inline

SlideView inline. Presenting takes the border off, blacks the surround out and fits the slide edge to edge with the control bar over it.

this.Viewer.StartPresenting();   // MAUI

<SlideView @ref="viewer" Deck="deck" @bind-IsPresenting="presenting" />
@code {
    Task PresentAsync() => this.viewer!.StartPresentingAsync();   // Blazor
}

IsPresenting fits the slide edge to edge on black with no border and no margin, drops the app’s chrome, and lays an auto-hiding control bar over it — previous, a counter, next, Notes, Exit — that fades after a few seconds and comes back on a touch or a pointer move. Tapping advances, except in the left quarter of the surface, which goes back. Mode is ignored for the length of the show and restored when it ends, because a thumbnail wall is how you find a slide rather than how you show one, and the inline viewer is left on the slide the show ended on.

Presenting also pins the theme: black surround whatever the app is set to, and the slide’s border dropped. A viewer’s chrome is part of an app, but on a projector any lift at all reads as a grey frame around the deck.

Speaker notes are in the show. The Notes button appears only when some slide in the deck actually has them, and the panel does not fade with the bar — notes are read while you are talking rather than while you are moving the pointer, so putting them on the chrome’s timer would mean wiggling the mouse to finish a sentence.

On MAUI the show is a modal page carrying its own SlideView, not a re-parented viewer: moving a view in the tree rebuilds its platform view, which is a visible stall on a canvas. Its own controller too — a controller owns a viewport, and sharing one would leave the inline viewer laid out for the projector after the show ended, with nothing to resize it back. Only the index crosses back. A modal page is also what makes the platform back gesture work, and the display is kept awake for the duration.

On Blazor the CSS covers the viewport and then the Fullscreen API is asked for on top of it, in that order — requestFullscreen can be refused, and a refusal still has to give the room a full-window deck rather than nothing at all. F5 starts a show and Escape leaves one, which are PowerPoint’s keys. Prefer StartPresentingAsync() over setting the bound parameter: a browser grants fullscreen only inside the gesture that asked for it, and a round trip through a parameter loses that gesture.

→ Presenting mode

---

The rest of the Office work

Individually small, collectively the difference between a demo and something you would hand a user:

• Page orientation. Layout ▸ Page carries Portrait and Landscape as two toggles rather than one, because a page is one of two things rather than on or off. Turning the paper swaps the dimensions and writes w:orient — do one without the other and Word either shows the wrong state or re-swaps on open.
• Page numbering, headers, footers, page breaks and print layout are on the ribbon. All four were already in the controller and reachable only from code. The page number is a menu rather than a button, because a number has a place and a form, and it appends to a header already there rather than replacing it.
• Page margins are four buttons — Normal, Narrow, Moderate, Wide — rather than one button that opens a sheet of four. Four is few enough to show, and the whole point of a ribbon is that the choices are on it.
• Zoom, and a fit-width that makes a page readable on a phone. Pinch on touch, ctrl-wheel on the desktop, and a Zoom group stepping 50 – 300%. Fit width sets the zoom so the page exactly spans the window, which on a phone is the difference between a document you can read and one you pan across a line at a time.
• Cut, copy, paste, insert row and insert column on the spreadsheet — whole rows and columns, not just cell ranges, taking values, formulas and formatting as one undoable step. A marching-ants border marks what is on the clipboard, in its own colour rather than a dashed version of the selection green, since marking a source and moving to a destination is the whole shape of a paste.
• Both editable surfaces can be panned with a finger. A drag meant “extend the selection”, which is right for a mouse and left touch with no gesture to scroll with — on a phone there was no way to reach a column off the right-hand edge at all. Under touch a tap selects, a drag pans, and the selection is extended by dragging the round handles on its ends. Nothing changes for a mouse. The kind is read off each pointer event rather than decided per platform, because both turn up in one session on an iPad with a trackpad.
• Spelling suggestions on the keyboard accessory bar (iOS/Android). The red underline was the whole of what a phone user got, since the menu that acts on one hangs off a long press — and a long press is not a gesture anyone performs on a word they were not already suspicious of. Corrections now appear above the keyboard while the caret is inside a misspelling, with Ignore and Add beside them. From the toolbar, Home ▸ Proofing walks the errors in either direction for a complete review loop.
• Watermarks, on the viewers as well as the editors. Watermark draws a picture behind the content on all six controls, defaulting to a 0.15 wash because the failure people actually hit is one drawn at full strength that makes the page unusable. It is a display watermark — drawn, not written into the file — which is deliberate: Word keeps a VML shape in the header part, Excel has no watermark at all and fakes it with a header image, and PowerPoint expects a picture on the slide master, so persisting means three unrelated mechanisms where drawing means one.
• Each Office control wears its own colour. Accent paints the ribbon’s header band, tab ink and underline, and defaults to the colour Microsoft’s own application wears — Excel green #107C41, Word blue #185ABD, PowerPoint red #C43E1C. A user reads those colours as “spreadsheet” and “slides” before any label has been looked at. It is the one part of an Office control’s appearance deliberately not taken from the app’s theme; set your own brand colour, or null to leave the bar on the theme.

---

TimelineView

A vertical rail of markers with arbitrary content beside each one — the wizard’s three-state marker turned on its side and made item-driven. An activity feed, an order’s progress, an audit trail, a changelog.

<shiny:TimelineView ItemsSource="{Binding Events}" ActiveIndex="2">
    <shiny:TimelineView.ItemTemplate>
        <DataTemplate>
            <VerticalStackLayout Spacing="2">
                <Label Text="{Binding Title}" FontAttributes="Bold" />
                <Label Text="{Binding Detail}" FontSize="13" Opacity="0.75" />
            </VerticalStackLayout>
        </DataTemplate>
    </shiny:TimelineView.ItemTemplate>
</shiny:TimelineView>

<TimelineView TItem="Delivery" ItemsSource="events" ActiveIndex="2">
    <ItemTemplate>
        <div class="entry-title">@context.Title</div>
        <div class="entry-body">@context.Detail</div>
    </ItemTemplate>
</TimelineView>

ActiveIndex says how far along it is: nodes before it are complete, the one at it is current and draws a ring, everything after is pending, and the connector fills to match so the rail reads as a progress bar rather than a set of unrelated links. It defaults to -1 — a timeline handed no position should not silently claim its first entry has happened — and AllActive fills every node for a history where everything has already happened.

Rows size to their content, which is what decides how the rail is built: each node is one row whose height comes from whatever the template produced, and the connector stretches to fill it. That is why the rail is built per row rather than drawn as one continuous line behind the stack — a single line would have to be measured against a total height nothing knows until after layout. The marker sits a little below the top of its row so it lines up with the first line of text rather than the middle of the content box. Not virtualized on either host: the deliberate trade for rows of differing height, which is exactly what a recycling list is worst at.

The three templates bind to different things on purpose. ItemTemplate and OppositeTemplate take the item, because content beside a timeline is ordinary content and should not reach through a wrapper to say Item.Title. MarkerTemplate takes a TimelineNode — index, state, whether it caps either end — because everything deciding how a marker is drawn is a property of position and none of it exists on the item.

MAUI (iOS)

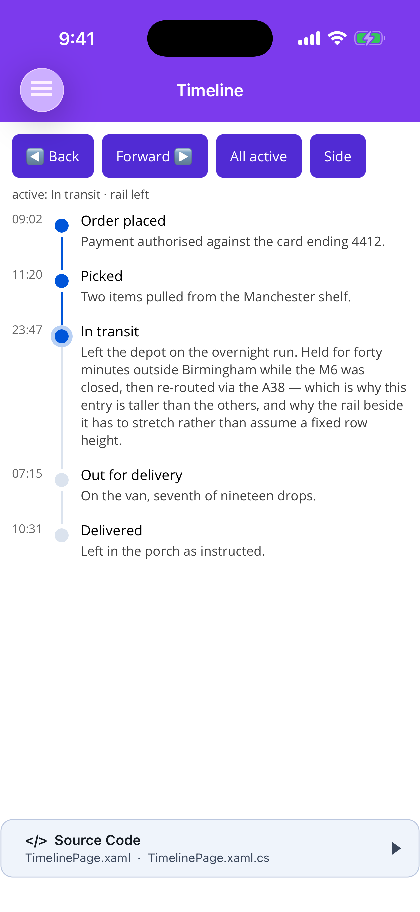

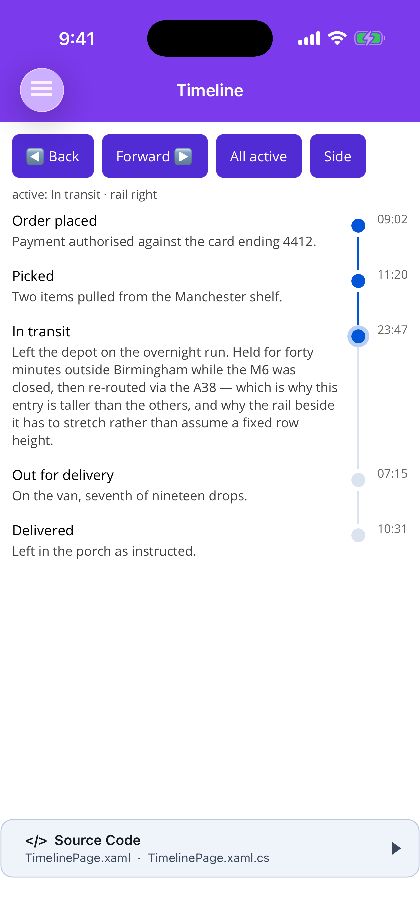

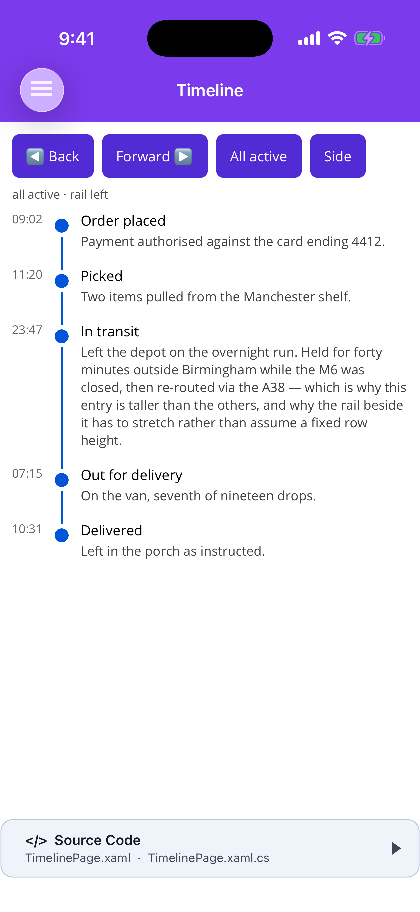

Rail left, active at index 2	AllActive	RailPosition="Right"

Blazor

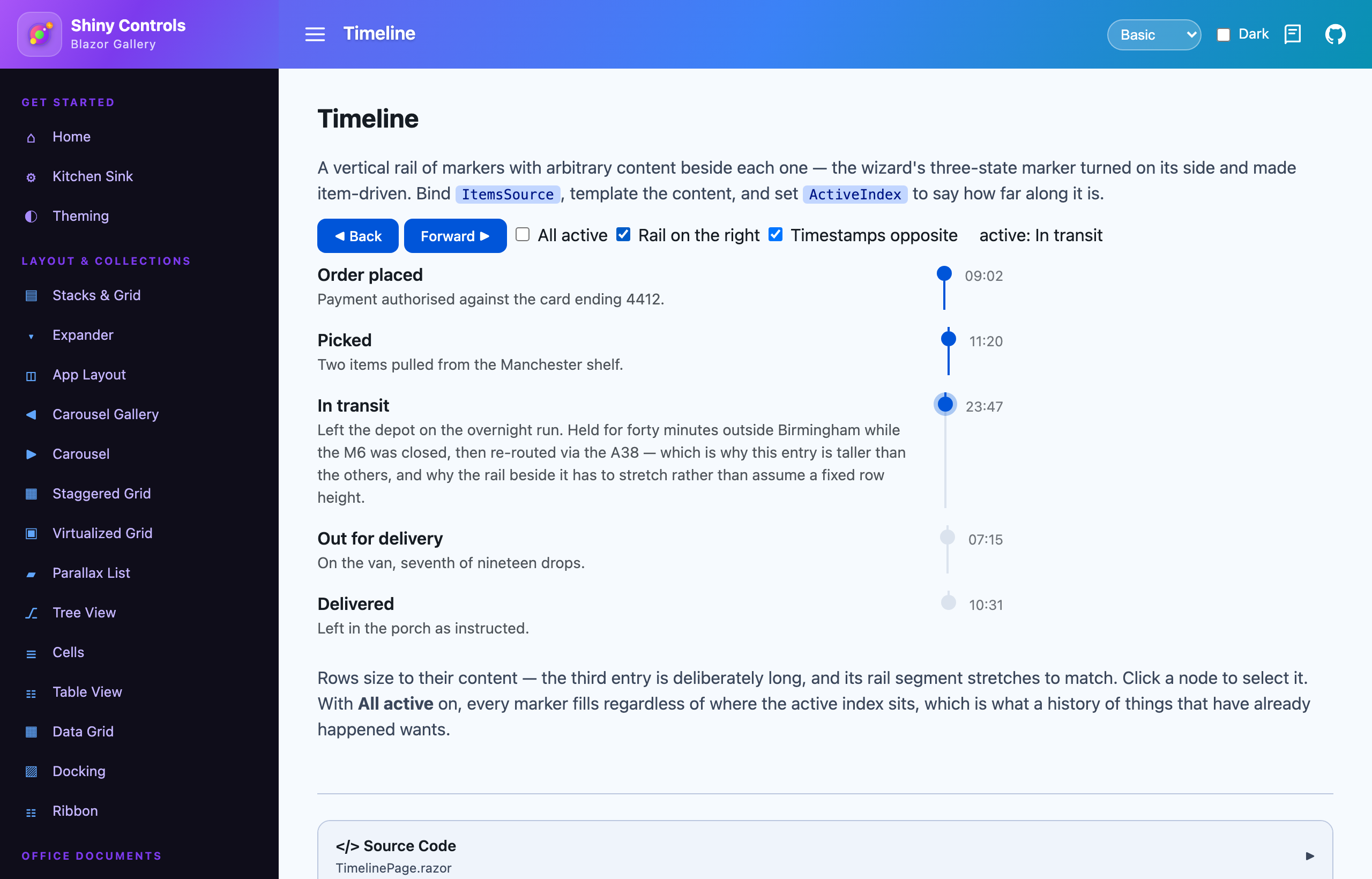

Rail left, active at index 2	AllActive	RailPosition="Right"

The third entry is long on purpose: its rail segment stretches to the row instead of assuming a fixed height, which is the whole reason the rail is built per row.

→ Timeline

---

Motion icons: 42 → 111

Sixty-nine new icons, each with motion authored for it rather than a preset applied to it: a folder tab that lifts off its crease, a page that turns by squashing about the spine, three raindrops that fall, vanish and reappear above the cloud, a compass needle that settles in progressively smaller swings, a credit card that flips through a horizontal scale of zero.

The additions fill the gaps the original set had — a complete set of arrows and chevrons, the rest of the transport bar (stop, record, skip-back, skip-forward, shuffle, repeat, mute), files and folders, weather, and the round status glyphs — grouped in the docs as Actions, Navigation, Objects, Media, Files, Weather and Indicators. Names stay one flat, case-insensitive namespace, so nothing about lookup or MotionIconLibrary.Names changes and no existing icon was renamed or redrawn.

Directional icons are matched sets: every arrow travels the way it points and pulls its shaft in behind the head, every chevron bounces once in its own direction — so swapping arrow-right for arrow-left in a right-to-left layout gets the mirrored motion for free.

MAUI (iOS)

Triggers & code-driven playback	Presets & scrubbing	Browsing the set in the sample

Blazor

Triggers	Driven from code	Colour & accent	Presets on any icon

Every one of those is a single frame of something that only makes sense moving — the playground is the honest version.

→ Motion Icons · the icon set

---

Getting started

dotnet add package Shiny.Maui.Controls            # .NET MAUI
dotnet add package Shiny.Blazor.Controls          # Blazor

dotnet add package Shiny.Maui.Controls.Office     # Word, Excel, PowerPoint, Notebook
dotnet add package Shiny.Maui.Controls.Camera     # CameraView + IMediaService

The full 1.3 release notes carry everything, including the fixes this post skipped. Then go press things in the playground, and see the controls documentation for the rest.
