BottomSheet

A bottom sheet overlay that slides up from the bottom of the screen with configurable snap positions (detents), backdrop dimming, pan gestures, and automatic keyboard handling.

Frameworks

.NET MAUI

Blazor

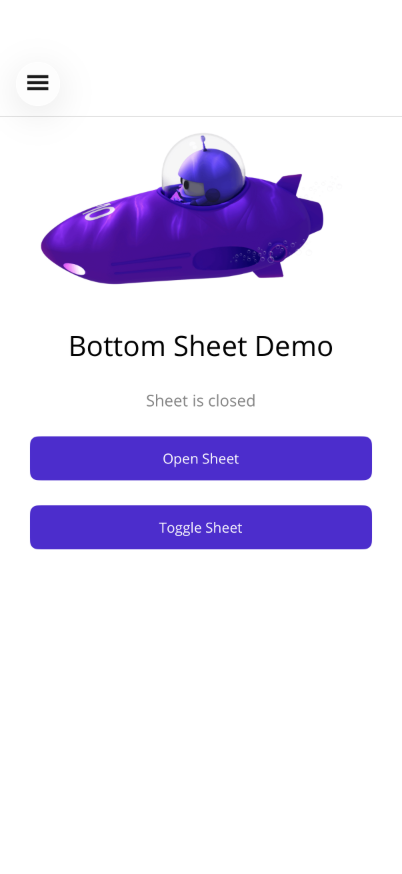

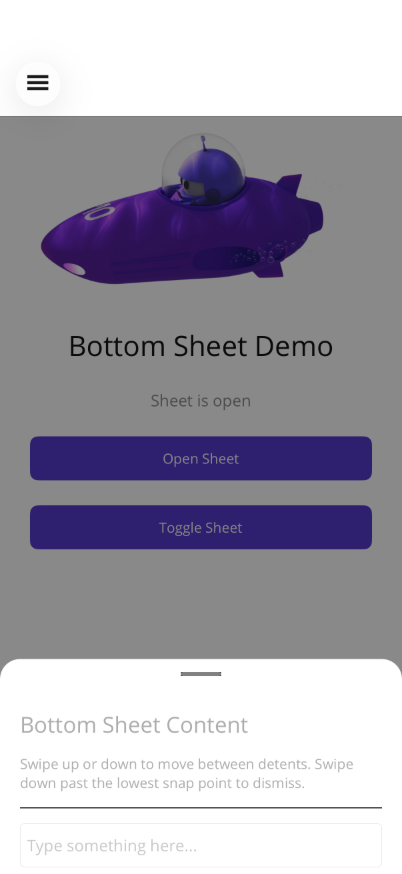

Closed	Open

Basic Usage

<shiny:BottomSheetView IsOpen="{Binding IsSheetOpen, Mode=TwoWay}">
    <VerticalStackLayout Padding="20" Spacing="10">
        <Label Text="Sheet Content" FontSize="18" FontAttributes="Bold" />
        <Label Text="Drag the handle or tap the backdrop to close." />
        <Button Text="Close" Command="{Binding CloseSheetCommand}" />
    </VerticalStackLayout>
</shiny:BottomSheetView>

<ContentPage>
    <Grid>
        <!-- Main page content -->
        <ScrollView>
            <VerticalStackLayout>
                <Button Text="Open Sheet" Command="{Binding OpenCommand}" />
            </VerticalStackLayout>
        </ScrollView>

        <!-- Bottom sheet overlays on top -->
        <shiny:BottomSheetView IsOpen="{Binding IsOpen, Mode=TwoWay}">
            <Label Text="Sheet content" />
        </shiny:BottomSheetView>
    </Grid>
</ContentPage>

Properties

Property	Type	Default	Description
`IsOpen`	`bool`	`false`	Show/hide the sheet (TwoWay bindable)
`SheetContent`	`View?`	`null`	Content displayed in the sheet (ContentProperty)
`Detents`	`ObservableCollection<DetentValue>`	Quarter, Half, Full	Snap positions as ratios of available height
`SheetBackgroundColor`	`Color`	`White`	Background of the sheet panel
`HandleColor`	`Color`	`Grey`	Drag handle indicator color
`SheetCornerRadius`	`double`	`16`	Top corner radius
`HasBackdrop`	`bool`	`true`	Show dimming backdrop behind the sheet
`CloseOnBackdropTap`	`bool`	`true`	Tap backdrop to close
`AnimationDuration`	`double`	`250`	Animation speed in ms
`ExpandOnInputFocus`	`bool`	`true`	Auto-expand when an input is focused
`IsLocked`	`bool`	`false`	Prevents swipe, pan, and backdrop tap dismiss; sheet can only be controlled programmatically
`FitContent`	`bool`	`false`	Measures content and auto-computes a single detent to fit it

DetentValue

Predefined snap points:

Static Property	Ratio	Description
`DetentValue.Quarter`	`0.25`	25% height
`DetentValue.Half`	`0.50`	50% height
`DetentValue.ThreeQuarters`	`0.75`	75% height
`DetentValue.Full`	`1.0`	Full height

Custom detent: new DetentValue(0.33) for 33%.

Custom Detents Example

<shiny:BottomSheetView IsOpen="{Binding IsOpen, Mode=TwoWay}"
                       SheetBackgroundColor="#1E1E1E"
                       HandleColor="#888888"
                       SheetCornerRadius="24">
    <shiny:BottomSheetView.Detents>
        <shiny:DetentValue Ratio="0.33" />
        <shiny:DetentValue Ratio="0.66" />
        <shiny:DetentValue Ratio="1.0" />
    </shiny:BottomSheetView.Detents>
    <VerticalStackLayout Padding="20">
        <Label Text="Custom Sheet" TextColor="White" />
    </VerticalStackLayout>
</shiny:BottomSheetView>

Events

Event	Args	Description
`Opened`	`EventArgs`	Sheet finished opening
`Closed`	`EventArgs`	Sheet finished closing
`DetentChanged`	`DetentValue`	Sheet snapped to a different detent

Features

Pan gesture — Drag up/down between detents; swipe past the lowest to close
Keyboard handling — Auto-expands when an Entry/Editor is focused, restores on dismiss
ScrollView integration — Scroll enabled only at the highest detent; disabled at lower detents for pan
Backdrop — Semi-transparent overlay that dims proportionally to sheet position
Locked mode — When IsLocked="True", the drag handle is hidden, pan gestures are disabled, and backdrop tap is ignored. The sheet can only be opened/closed via binding. Ideal for signature capture, selectors, or confirmation dialogs.
Fit content — When FitContent="True", the sheet measures its content and auto-computes a single detent to fit it, ignoring the Detents collection.

Locked Sheet Example

<!-- Signature capture: locked + auto-sized -->
<shiny:BottomSheetView IsOpen="{Binding IsSignatureOpen}"
                       IsLocked="True"
                       FitContent="True"
                       HasBackdrop="True"
                       SheetCornerRadius="20">
    <VerticalStackLayout Padding="20" Spacing="15">
        <Label Text="Draw your signature" FontSize="18" FontAttributes="Bold" />
        <!-- signature content -->
        <Button Text="Done" Command="{Binding DoneCommand}" />
    </VerticalStackLayout>
</shiny:BottomSheetView>
